Sports Buildings

At Clear Span Buildings we have several turnkey Sports Hall Packages. All the packages have upgrade options to meet your specific requirements.
  • Hire or Purchase
  • Temporary or Permanent building solutions
  • Designed and manufactured in the UK
  • Quick turnaround
  • Surface mounted – to avoid costly groundworks
  • Full design calculation included – for building control
  • CAD drawings included – for planning
  • Flexibility & strength to help your business grow
Every CSB Sports Building is engineered specifically for the site location to meet all mandatory building regulations and codes. We can supply structural calculation packs at no additional cost, for any building, and provide drawings for planning applications.

All our buildings are manufactured here in the UK with CE accreditation, ensuring you receive the highest quality of materials and service.

We have a quick turn-around time.

The package offered here is the ‘4 Court Sports Hall’. We have other options that are recommended by Sport England and please contact us for the specifications and associated costs. The other options as recommended by Sport England are:

  • Sports Hall + Changing Facility (+CH)
  • Sports Hall + Changing Facility + Health and Fitness (+CH / HF)

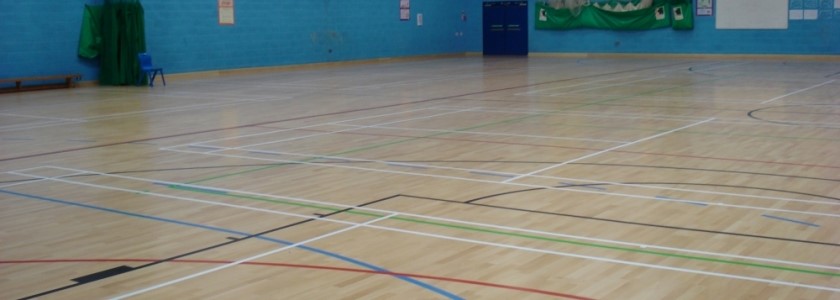

4 Court Sports Hall

Sports Hall

15m x 30m x 5m Eaves Sports Hall
Internal 2.5m Height Rebound Boards

Doors

  • 1 of Double Lockable Pedestrian Door
  • 2 of Single Unlockable Fire Exit Door Hire or Purchase
  • Temporary or Permanent building solutions
  • Designed and manufactured in the UK
  • Quick turnaround
  • Surface mounted
  • Full design calculation included – for building control
  • CAD drawings included – for planning
  • Flexibility & strength to help your business grow

Floor

  • Levelled and Suspended Galvanised Steel Sub-base
  • 25mm Treated Softwood to Type A
  • Packed to ground at each 1.67m x 0.83m = 1.39m2
  • Foam Underlay
  • 12mm Contract Quality Laminate Flooring to Type M

Line Markings

  • Basket Ball – Black
  • Badminton – White
  • Netball – Red
  • Volleyball – Green
  • Five-A-Side games – Yellow

Heating System

  • 150 KW Diesel Heater
  • 2000lt Bunded Fuel Tank
  • Ducting
  • Thermostat

Electrical System

  • 32 amp 3 Phase or 63amp Single Phase Distribution Board
  • 4 of twin 13amp Sockets
  • 1 of Light Switch
  • 10 of 250watt LED High Bay Lights
  • Connection to Heater
  • 3 of Internal Maintained Emergency Lights
  • 1 of External Non-Maintained Emergency Light

Contact our expert team for a free quote or advice 07946 498049 or 01691 839270

Optional Kit – Fitted Cost

  • Upgrade – To replace Levelled and Suspended Galvanised Steel Sub-base to a C30 Concrete Ring Beam and Slab with A142 Reinforcing Mesh with Type 1 Foundation Services Provisions Laid up to 5m from New Building Presuming Favourable site conditions: £60,000
  • 3m x 5m Entrance Canopy, Floor, Door & Light: £12,500
  • 3m x 15m Entrance Canopy, Floor, Door & Light: £20,000
  • 3m x 15m Equipment Store Canopy, Floor, Door & Light: £20,000
  • Upgrade of Concrete Floor to Canopies above: £150 pm2
  • Upgrade Laminate Floor to Sprung Solid Wood to Type A: £12,000
  • Ballast Securing Pack: £10,000
  • Duck Bill Anchor Securing Pack: £2,500
  • Fire Alarm – Stand Alone: £3,000
  • Layher Entrance Ramp 6m long 1:12 Aluminium: £4,500
  • Layher Exit Step 50cm height Aluminium: £2,250
  • Padded Rebound Boards to 2.5m Height: £POA
  • Fixed Netting Above Rebound Boards: £POA
  • Dividing Curtain Half Hall: £2,100
  • 1 pair Basketball Matchplay Baskets: £2,500
  • 1 pair Basketball Practice Baskets: £800

The above is an example of a specific building and terms, it is all up for discussion and negotiation as you know your business requirements better than us.

4 Court Sports Hall Purchase Structure Installation Total
Single Skin Roof & Wall Cladding – Anti-condensation to Roof £200,000 £25,000 £225,000
40mm Composite Roof & Wall Cladding £232,000 £30,000 £262,000
80mm Composite Wall & 120mm Composite Roof Cladding £249,000 £35,000 £284,000
4 Court Sports Hall Rental Structure Rental
Single Skin Roof & Wall Cladding – Anti-condensation to Roof Please call for cost
40mm Composite Roof & Wall Cladding Please call for cost
80mm Composite Wall & 120mm Composite Roof Cladding Please call for cost
